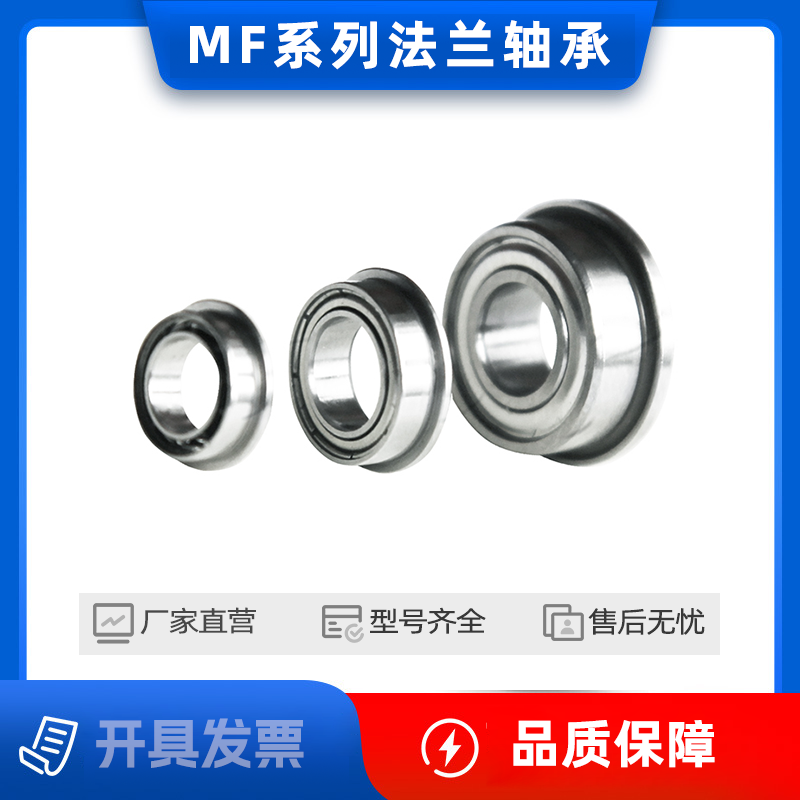

MF系列法兰轴承
MF系列法兰轴承，作为MR系列产品的升级之作，巧妙地在原有基础上融入了法兰设计。这一创新不仅保留了MR系列轴承的高精度、高刚性及长寿命等可靠性能，更通过法兰的增设，更大地提升了安装的便捷性与系统的整体稳定性。MF系列法兰轴承以其特别的优势，广泛应用于各类精密机械、自动化设备以及高端制造业中，成为连接传动部件、确保设备高效运行不可或缺的关键组件。
产品详情

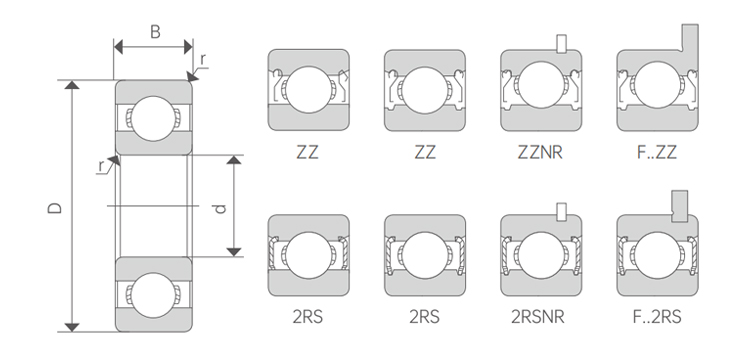

型号 Model | 主要尺寸 Dimension | 额定载荷 Basic Load Roting | ||||||||
| d | D | D1 | D2 | B | B1 | C1 | C2 | Cr | Cor | |
| mm | mm | mm | mm | mm | mm | mm | mm | N | N | |
| MF85 | 5 | 8 | 8 | 9 | 3 | 3 | 1 | 1 | 310 | 120 |
| MF95 | 5 | 9 | 9 | 10 | 3 | 3 | 1 | 1 | 430 | 168 |
| MF105 | 5 | 10 | 12 | 12 | 3 | 4 | 1 | 1 | 430 | 168 |
| F685 | 5 | 11 | 12.5 | 12.5 | 3 | 5 | 0.8 | 1 | 715 | 281 |
| F695 | 5 | 13 | 15 | 15 | 4 | 4 | 1 | 1 | 1080 | 430 |
| F605 | 5 | 14 | 16 | 16 | 5 | 5 | 1 | 1 | 1330 | 505 |
| F625 | 5 | 16 | 18 | 18 | 5 | 5 | 1 | 1 | 1730 | 670 |
| F635 | 5 | 19 | 22 | 22 | 6 | 6 | 1.5 | 1.5 | 2340 | 885 |
| MF106 | 6 | 10 | 11.2 | 11.2 | 2.5 | 3 | 0.6 | 0.6 | 495 | 218 |
| MF126 | 6 | 12 | 13.6 | 13.6 | 3 | 4 | 0.6 | 0.8 | 715 | 292 |
| F686 | 6 | 13 | 15 | 15 | 3.5 | 5 | 1 | 1.1 | 1080 | 440 |
| F696 | 6 | 15 | 17 | 17 | 5 | 5 | 1.2 | 1.2 | 1730 | 670 |
| F606 | 6 | 17 | 19 | 19 | 6 | 6 | 1.2 | 1.2 | 2260 | 835 |
| F626 | 6 | 19 | 22 | 22 | 6 | 6 | 1.5 | 1.5 | 2340 | 885 |
| F636 | 6 | 22 | 25 | 25 | 7 | 7 | 2 | 2 | 3300 | 1370 |
| MF117 | 7 | 11 | 12.2 | 12.2 | 2.5 | 3 | 0.6 | 0.6 | 455 | 201 |
| MF137 | 7 | 13 | 14.2 | 14.6 | 3 | 4 | 0.6 | 0.8 | 540 | 276 |
| F687 | 7 | 14 | 16 | 16 | 3.5 | 5 | 1 | 1.1 | 1170 | 510 |
| F697 | 7 | 17 | 19 | 19 | 5 | 5 | 1.2 | 1.2 | 1610 | 715 |
| F607 | 7 | 19 | 22 | 22 | 6 | 6 | 1.5 | 1.5 | 2340 | 885 |
| F627 | 7 | 22 | 25 | 25 | 7 | 7 | 1.5 | 1.5 | 3300 | 1370 |
| MF128 | 8 | 12 | 13.2 | 13.6 | 2.5 | 3.5 | 0.6 | 0.8 | 545 | 275 |
| MF148 | 8 | 14 | 15.6 | 15.6 | 3.5 | 4 | 0.8 | 0.8 | 820 | 385 |
| F688 | 8 | 16 | 18 | 18 | 4 | 5 | 1 | 1.1 | 1610 | 710 |
| F698 | 8 | 19 | 22 | 22 | 6 | 6 | 1.5 | 1.5 | 2240 | 910 |
| F608 | 8 | 22 | 25 | 25 | 7 | 7 | 1.5 | 1.5 | 3300 | 1370 |
